TYD 110SV
Item No.：
A-004
Item No.：
Category：
Summary
Big space between tie-tars and opening stroke, for bigger size of moulds.Plug-in card type ejection undercling structure, for mould ejecting restoration.
Description
TYD series servo energy saving injecion moulding machine is researched and designed by Taiyide technology team. TYD machine not only inherited the advantages of energy saving, precise control, fast response and reliable performance from traditional TYD machine, also made great improvements in repeatability, plasticizing speed, power comsumption and machine noise. With all those advantages, leading technology implementation. TYD machine has got technology design patents.
High Response Servo Motor
Because using high response servo motor and internal gear pump force system, the machine achieve maximum output 0.05s.
Compared to traditional injection moulding machines, the response speed is faster. Time is shortened and increase the produce efficiency.
Comparison of Repetitive Precision
Superposition of servo motor' s precision and the internal gear pump’s precision, through the high sensitive pressure feed
back device to form closed loop. The repetitive precision of the machies is up to 3‰. And compared to traditional hydraulic
injection moulding machines showing greater injection stability.
|
STANDARDS |
TYD110SV |
|||
|
Injection Unit |
unit |
A |
B |
C |
|
Screw Diameter |
mm |
φ36 |
φ40 |
φ42 |
|
Screw Ratio |
L/D |
22.8 |
20.4 |
19.5 |
| Theoretical Injection Volume |
cm3 |
168 |
207 |
228 |
| Theoretical Injection Weight ( PS) |
g |
153 |
188 |
207 |
|
Injection Pressure |
Mpa |
212 |
171 |
155 |
|
Injection Rate |
g/s |
84 |
104 |
115 |
|
njection Stroke |
mm |
165 |
||
|
Screw Speed |
rpm |
0~201 |
||
|
Clamping Unit |
|
|
||
|
Clamping Force |
KN |
1100 |
||
| Opening Stroke |
mm |
330 |
||
| Mold Thickness (min-max) |
mm |
150-400 |
||

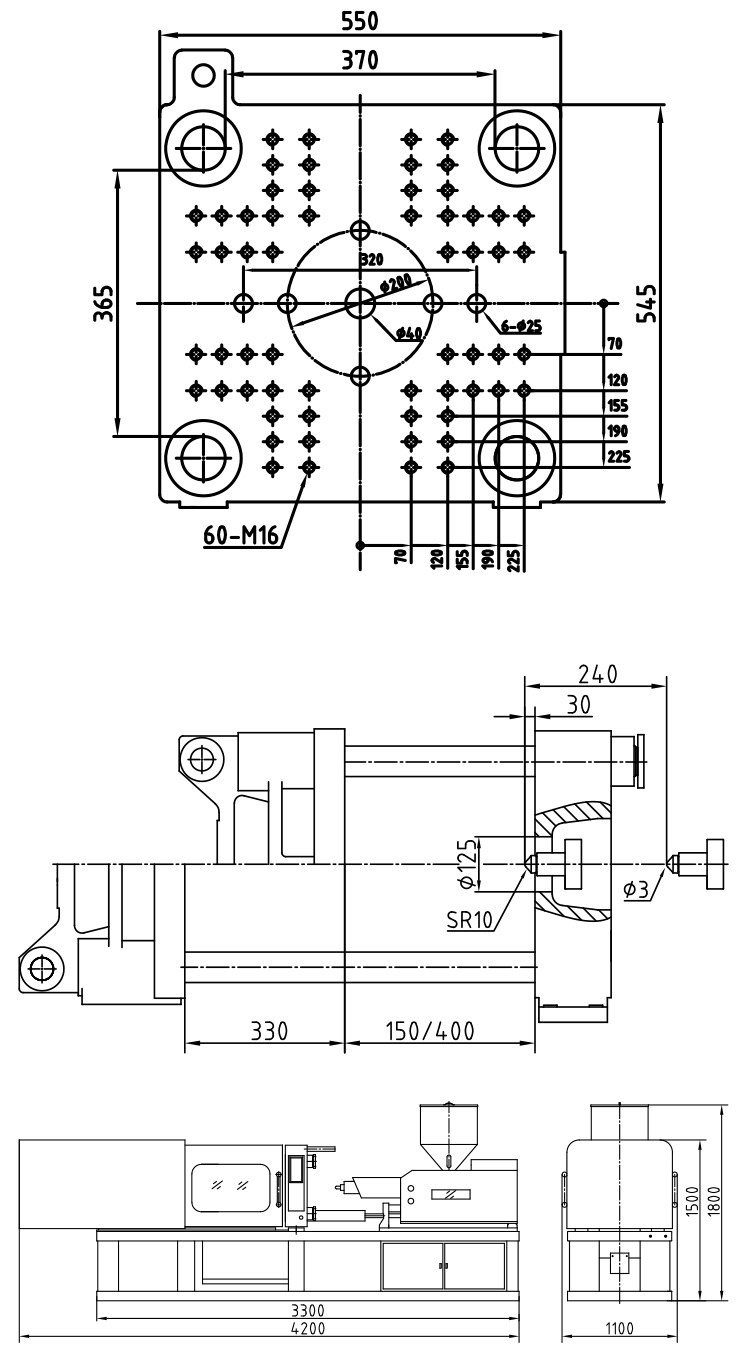

| Space Between Tie Bars ( WxH ) |
mm |
370×365 |
||
|
Ejection Force |
KN |
38 |
||
|
Eiection Stroke |
mm |
100 |
||
|
Ejector Number |
p |
4+1 |
||
|
Others |
|
|
||
| Max. Hydraulic System Pressure |
Mpa |
16 |
||
|
Pump Driving Power |
KW |
15 |
||
|
Heafing Power |
KW |
9.2 |
||
|
Oil Tank Capacity |
L |
240 |
||
| Machine Dimension(L x W x H) |
m |
4.20x1.10x1.80 |
||
|
Machine Weight |
T |
3 |
||
● Please inform us when you have other special requirements.
● The above data are for reference only, Taiyide may subjectto change without prior notes.
